Sundiate Solar Street Light Pole with Arms

Height Range：6–12 meters
Material：Q345B / S355JR / Q460 / A36 Steel
Pole Thickness：2.5mm–4.0mm (customizable)
Surface Treatment：Hot Dip Galvanizing (HDG)
Galvanizing Standard：≥ 80-100 μm coating
Wind Pressure Resistance：≥ 150 km/h
Arm Type：Single arm / Double arm
Pole Shape：Conical / Octagonal
Installation Method：Anchor bolt foundation
Application：Solar street lighting, LED roadway lighting, municipal projects
Availability:
Quantity:
Inquire Add to Basket

6 meter galvanized street light
galvanized street light pole with arm 6m
double arm 6m galvanized street light
octagonal 6m street light pole

  • Sundiate Lighting

LED lamp
pole  height
solar panel
lithium battery
lighting
Space
center luminance
working hous
per day
20W
4-5M
50W
15ah
>15M
>18 LUX
10-12 hous
30W
5-6M
80W
20ah
>20M
>22 LUX
10-12 hous
40W
6-7M
1000W
30ah
>20M
>27 LUX
10-12 hous
50W
7M
120W
40ah
>25M
>30 LUX
10-12 hous
60W
7-8M
140w
60ah
>25M
>32 LUX
10-12 hous
80W
8-9M
160w
75ah
>25M
>35 LUX
10-12 hous
100W
10M
180w
90ah
>30M
>38 LUX
10-12 hous
120W
12M
200W
100ah
>35M
>40 LUX
10-12 hous

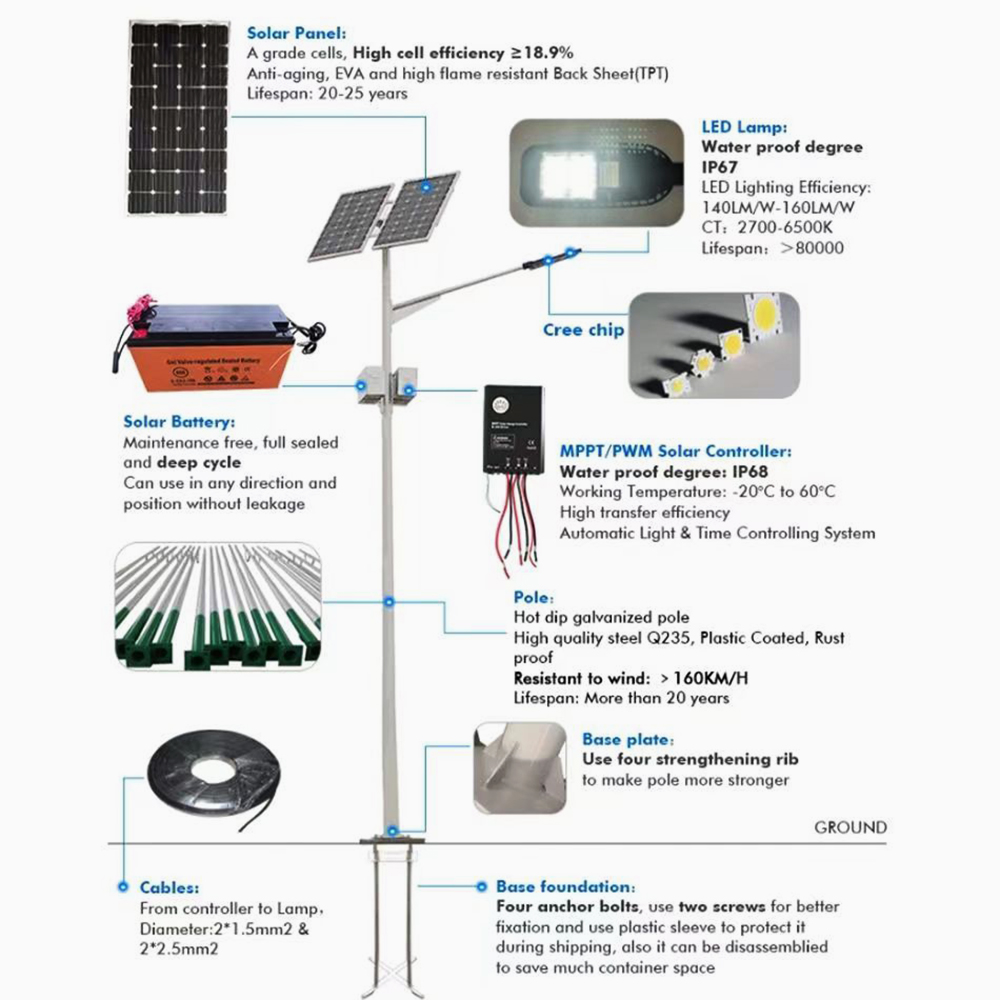

Details

A. Solar Panel

1:Monocrystalline solar panel from 30W to 350w, efficiency more than 19.5%
2:10 years warranty for solar panels: 20 years power generation capacity.


B. LED Lamp

1:LED light source from 20W to 300w, with more than 10years lifespan
2:Lamp housing: die-casting aluminum, thoughed glass cover, IP66
3:Auto Over-charging/discharging protection, reverse-connection protection

4:More than 100  types can choose



C. Steel pole
1: Height from 1M to 18M, OEM is avaiable
2:Surface treatment: Hot dip-galvanized and powder coated.
3:With Arm, Bracket, Flange,
Fittings,cables


D. Solar Controller
1:12V/24V automatic adaptation
2:Smart light control time control

3:Famous brand, quality assurance



E Lithium battery
1:Long service lifespan, with charge and discharge cycle over 1500 times.
2:Fast charging speed, 1.5times than the normal battery.
3:High depth-of-discharge, depth-of discharge of 95%(DOD of 95%)
4:Large battery capacity, storage battery is 5 times than thenormal battery.
5:Gell battery is avaiable


F. Base Foundation& Fittings
M18,M20,M26... can be providedCan be galvanized

911

6m street light pole




6 meters lighting pole


6m street lighting pole

Galvanized street light pole

Previous:
Next:
6 meter galvanized street light 6m hot dip galvanized street light galvanized street light pole with arm 6m single arm 6m street light pole double arm 6m galvanized street light round 6m galvanized light pole octagonal 6m street light pole hot dip galvanized 6m light pole
